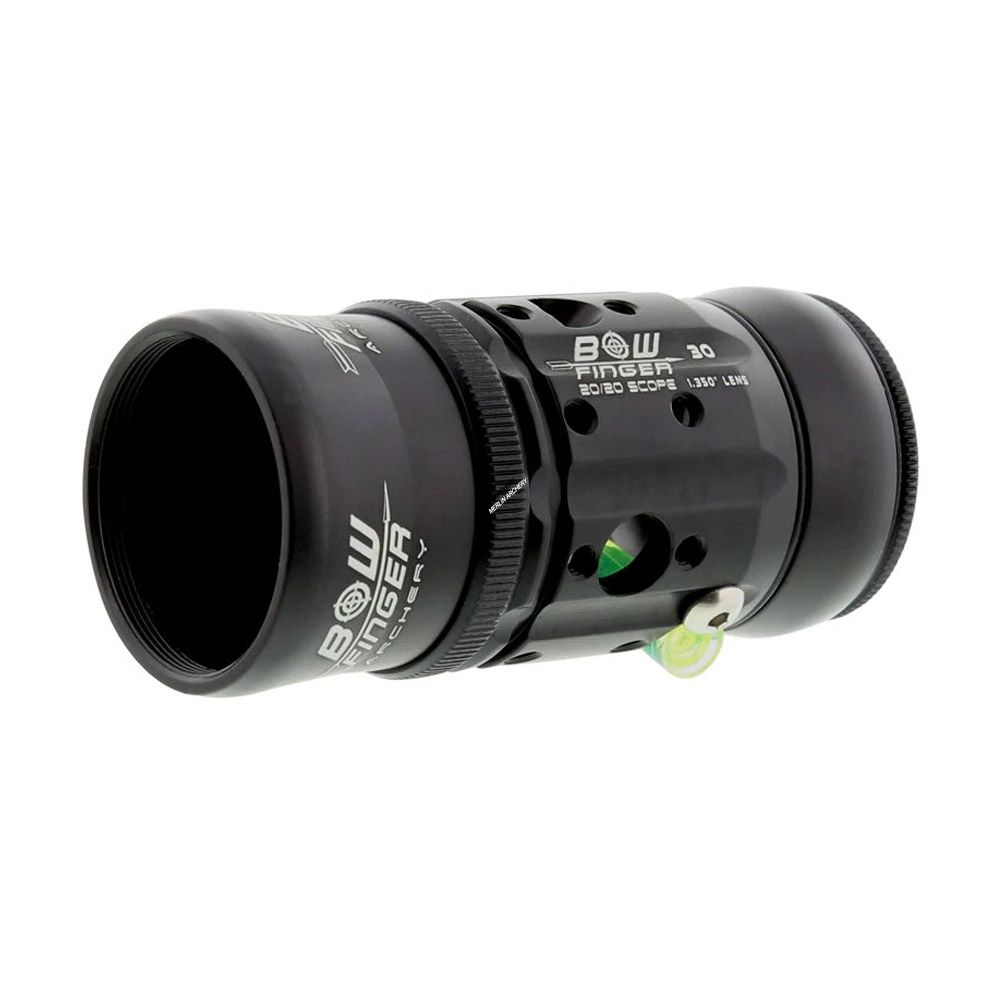

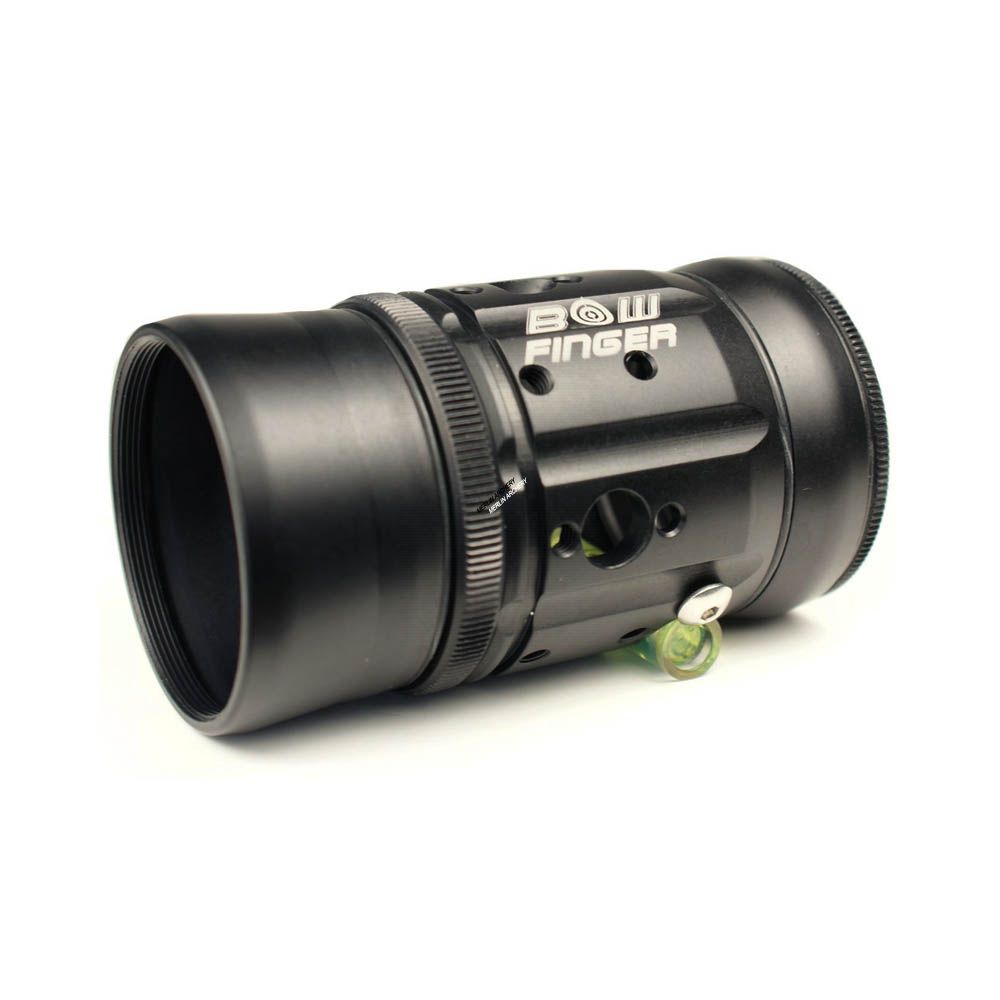

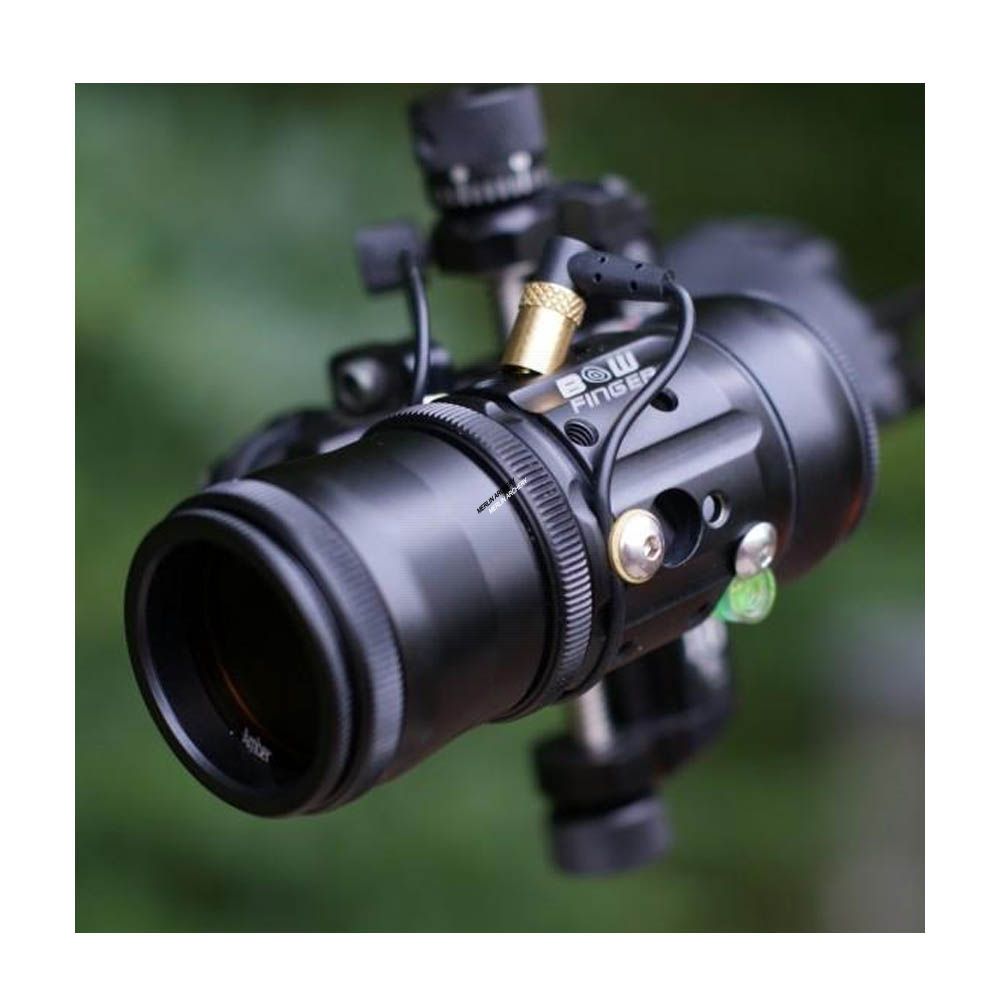

Bowfinger 20/20 Scope Kit

The correct set-up to match a particular situation is paramount for success in any target shooting application.

The 20/20 scope kit by Bowfinger has a variety of build configurations that will give any archer confidence in knowing they have the right tool for the job.

30mm and 40mm Kits Include:

• Pin groove keeps pin straight and fiber behind the pin

• Nine 8/32 tapped holes for attaching light kit: One angled to intersect centre of the lens for illuminating a colored dot

• All 20/20 components are interchangeable with matching threads

• 5/16 Mounting Slot accepts a hex or square mounting shaft

• 8 Pin Mounting Positions

30mm Dimensions:

• Short and Long Shade have an outside diameter of 1.6"
• Lens Diameter: 1.350"  / Max Diameter Lens: 1.355"

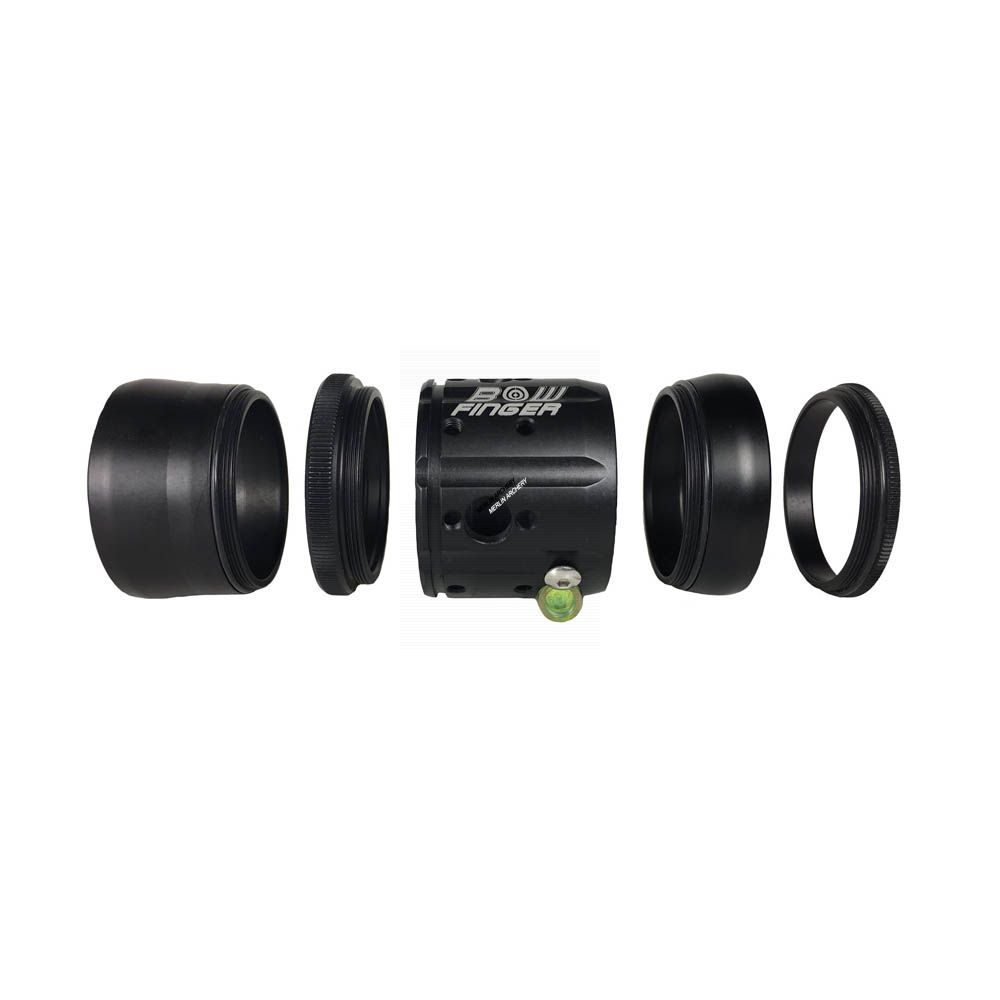

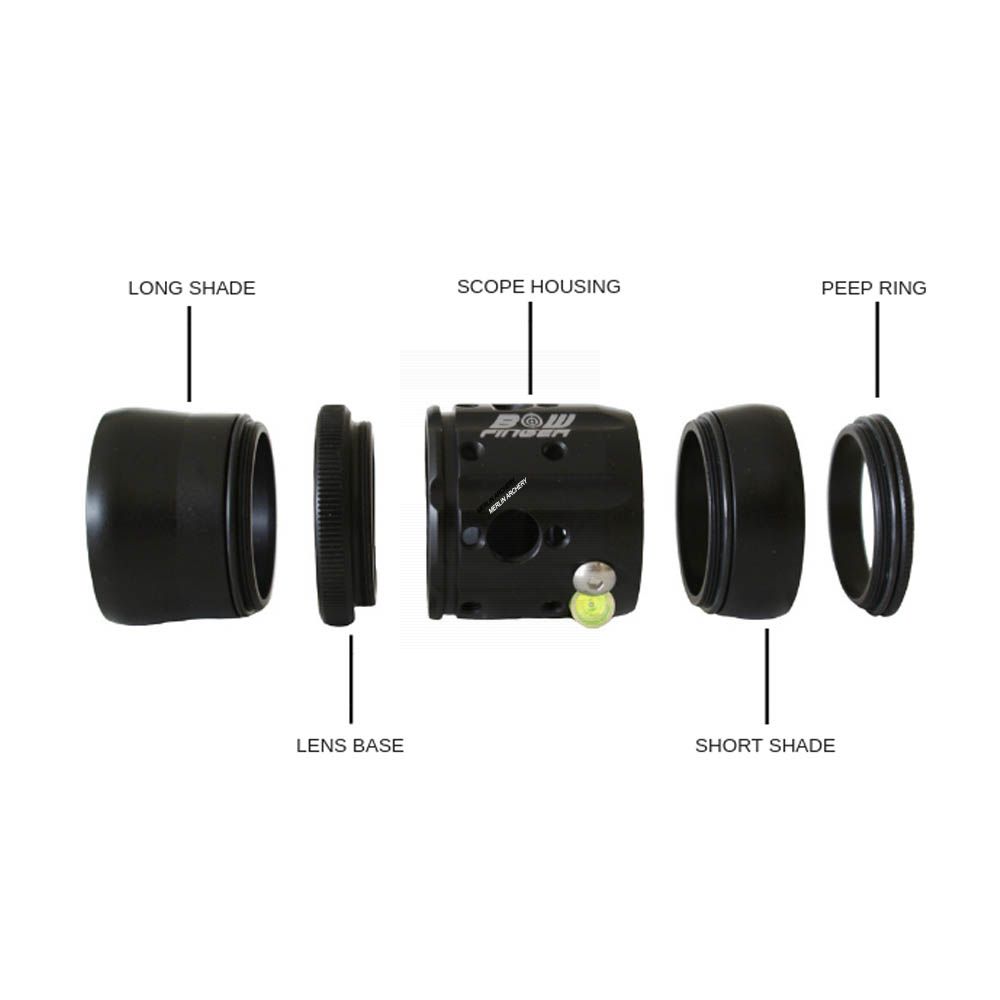

• The overall length of kit: 3.5"  (Scope housing, lens base, long hood, short hood & peep ring)

40mm Dimensions:

• Short and Long Shade have an outside diameter of 1.98"
• Lens Diameter: 1.750"  / Max Lens Diameter: 1.755"
• The overall length of kit: 3.5" (Scope housing, lens base, long hood, short hood & peep ring
• Inside diameter of scope: 40mm
• Weight: 3oz
